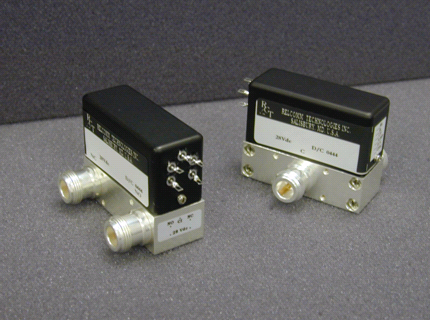

RDL HIGH-POWER SERIES

RelComm Technologies, Inc. introduces a new high power 1P2T failsafe coaxial relay with side-launched connectors. This robust device incorporates type N connectors and is enhanced throughout with low loss, high temperature dielectrics. The side-launch connector configuration adds versatility for system layout. Particularly when cabling into through-panel applications. Performance is rated to 3 GHz VSWR 1.20:1 maximum, Insertion Loss 0.20 dB maximum and Isolation better than -60 dB. Power handling is rated 1 KW at 1 GHz and 650 watts at 3 GHz. This device includes auxiliary position indicators.

Product Image

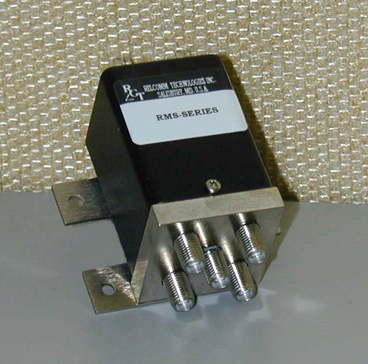

RMS 1P4T SMALL SIZE RF COAXIAL RELAY

RelComm Technologies, Inc. introduces a new 1P4T coaxial relay now available in a familiar style outline. This RMS Series boasts exceptional performance to 18 GHz - VSWR 1.50:1 maximum, Insertion Loss 0.50 dB maximum and Isolation better than -60 dB. This device exhibits a short electrical length and compact mechanical package measuring 1.30 sq. x 2.00. The bracket provides ease and versatility in mounting. Available in failsafe and latching configurations.

Product Image

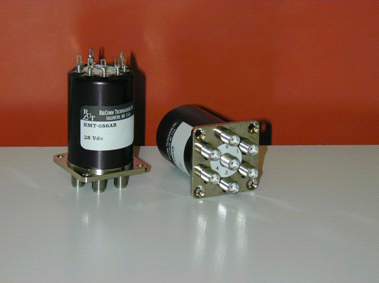

RMT MULTI-POSITION SMALL PACKAGE RF COAXIAL RELAY

RelComm Technologies, Inc. has complimented its product line by offering a new multi-position relay in a smaller package. The RMT Series “SMA” connectorized relay measures 1.33” Sq. x 1.80” high. This device provides greater layout and packaging density with exceptional RF performance to 18 GHz. Product is available with up to six output positions in a failsafe configuration. Options include DC header & logic. “Latching” version available soon!

Product Image



1P2T HOT SWITCHABLE RELAY

Available from Relcomm Technologies, Inc. is a 1P2T Hot Switchable Relay. The relay's configuration utilizes standard type N connectors and mechanical package outline. Its internal contacts employ special arc-quenching alloys and are complimented with a make-before-break switching configuration. Exceptional RF performance is rated to 8 GHz with hot switch power levels rated at 100 W CW to 2 GHz field tested beyond 100K cycles, 80 W CW to 4 GHz, and 60 W CW to 8 GHz. Ask for RelComm p/n RDL-2N3A8-HI.

Product Brochure

Specifications

Buy Now !


RelComm Technologies, Inc. specializes in the manufacture of RF coaxial relays for mission critical communications and instrumentation.
